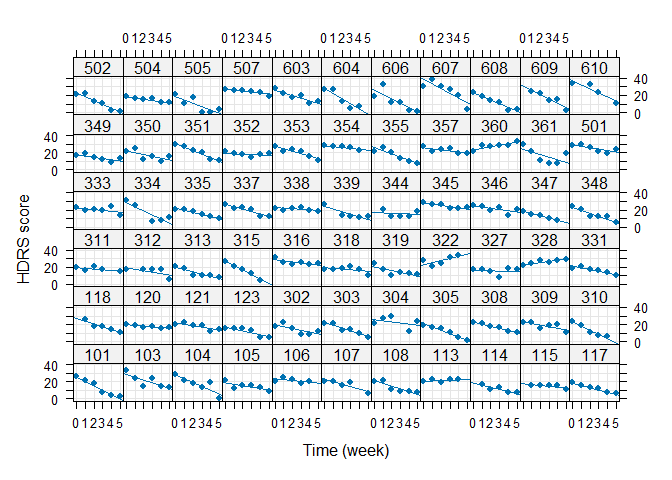

Power for mixed-effects models ================ Last modified: 2026-01-09 ``` r library(lattice) library(lme4) ``` # Reanalysis ## Application context: Depression and type of diagnosis - Reisby et al. (1977) studied the effect of Imipramin on 66 inpatients treated for depression - Depression was measured with the Hamilton depression rating scale - Patients were classified into endogenous and non-endogenous depressed - Depression was measured weekly for 6 time points Data: [reisby.txt](../data/reisby.txt) ``` r dat <- read.table("../data/reisby.txt", header = TRUE) dat$id <- factor(dat$id) dat$diag <- factor(dat$diag, levels = c("nonen", "endog")) dat <- na.omit(dat) # drop missing values head(dat, n = 13) ``` ## id hamd week diag endweek ## 1 101 26 0 nonen 0 ## 2 101 22 1 nonen 0 ## 3 101 18 2 nonen 0 ## 4 101 7 3 nonen 0 ## 5 101 4 4 nonen 0 ## 6 101 3 5 nonen 0 ## 7 103 33 0 nonen 0 ## 8 103 24 1 nonen 0 ## 9 103 15 2 nonen 0 ## 10 103 24 3 nonen 0 ## 11 103 15 4 nonen 0 ## 12 103 13 5 nonen 0 ## 13 104 29 0 endog 0 ``` r xyplot(hamd ~ week | id, data = dat, type=c("g", "r", "p"), pch = 16, layout = c(11, 6), ylab = "HDRS score", xlab = "Time (week)") ``` ![](powersim-lmm_files/figure-gfm/unnamed-chunk-2-1.png) ## Random-intercept model $$ \begin{aligned} Y_{ij} &= \beta_0 + \beta_1 \, \mathtt{week}_{ij} + \upsilon_{0i} + \varepsilon_{ij} \\ \upsilon_{0i} &\sim N(0, \sigma^2_{\upsilon_0}) \text{ i.i.d.} \\ \mathbf{\varepsilon}_i &\sim N(0, \, \sigma^2) \text{ i.i.d.} \\ i &= 1, \ldots, I, \quad j = 1, \ldots n_i \end{aligned} $$ ``` r m1 <- lmer(hamd ~ week + (1 | id), data = dat, REML = FALSE) summary(m1) ``` ## Linear mixed model fit by maximum likelihood ['lmerMod'] ## Formula: hamd ~ week + (1 | id) ## Data: dat ## ## AIC BIC logLik -2*log(L) df.resid ## 2293.2 2308.9 -1142.6 2285.2 371 ## ## Scaled residuals: ## Min 1Q Median 3Q Max ## -3.1739 -0.5876 -0.0342 0.5465 3.5297 ## ## Random effects: ## Groups Name Variance Std.Dev. ## id (Intercept) 16.16 4.019 ## Residual 19.04 4.363 ## Number of obs: 375, groups: id, 66 ## ## Fixed effects: ## Estimate Std. Error t value ## (Intercept) 23.5518 0.6385 36.88 ## week -2.3757 0.1350 -17.60 ## ## Correlation of Fixed Effects: ## (Intr) ## week -0.524 ## Random-slope model $$ \begin{aligned} Y_{ij} &= \beta_0 + \beta_1 \, \mathtt{week}_{ij} + \upsilon_{0i} + \upsilon_{1i}\, \mathtt{week}_{ij} + \varepsilon_{ij} \\ \begin{pmatrix} \upsilon_{0i}\\ \upsilon_{1i} \end{pmatrix} &\sim N \left(\begin{pmatrix} 0\\ 0 \end{pmatrix}, \, \mathbf{\Sigma}_\upsilon = \begin{pmatrix} \sigma^2_{\upsilon_0} & \sigma_{\upsilon_0 \upsilon_1} \\ \sigma_{\upsilon_0 \upsilon_1} & \sigma^2_{\upsilon_1} \\ \end{pmatrix} \right) \text{ i.i.d.} \\ \mathbf{\varepsilon}_i &\sim N(\mathbf{0}, \, \sigma^2 \mathbf{I}_{n_i}) \text{ i.i.d.} \\ i &= 1, \ldots, I, \quad j = 1, \ldots n_i \end{aligned} $$ ``` r m2 <- lmer(hamd ~ week + (week | id), data = dat, REML = FALSE) summary(m2) ``` ## Linear mixed model fit by maximum likelihood ['lmerMod'] ## Formula: hamd ~ week + (week | id) ## Data: dat ## ## AIC BIC logLik -2*log(L) df.resid ## 2231.0 2254.6 -1109.5 2219.0 369 ## ## Scaled residuals: ## Min 1Q Median 3Q Max ## -2.7460 -0.5016 0.0332 0.5177 3.6834 ## ## Random effects: ## Groups Name Variance Std.Dev. Corr ## id (Intercept) 12.631 3.554 ## week 2.079 1.442 -0.28 ## Residual 12.216 3.495 ## Number of obs: 375, groups: id, 66 ## ## Fixed effects: ## Estimate Std. Error t value ## (Intercept) 23.5769 0.5456 43.22 ## week -2.3771 0.2087 -11.39 ## ## Correlation of Fixed Effects: ## (Intr) ## week -0.449 ## Partial pooling ``` r indiv <- unlist( sapply(unique(dat$id), function(i) predict(lm(hamd ~ week, dat[dat$id == i, ]))) ) xyplot(hamd + predict(m2, re.form = ~ 0) + predict(m2) + indiv ~ week | id, data = dat, type = c("p", "l", "l", "l"), pch = 16, grid = TRUE, distribute.type = TRUE, layout = c(11, 6), ylab = "HDRS score", xlab = "Time (week)", # customize colors col = c("#434F4F", "#3CB4DC", "#FF6900", "#78004B"), # add legend key = list(space = "top", columns = 3, text = list(c("Population", "Mixed model", "Within-subject")), lines = list(col = c("#3CB4DC", "#FF6900", "#78004B"))) ) ``` ![](powersim-lmm_files/figure-gfm/unnamed-chunk-5-1.png) ## By-group random-slope model ``` r m3 <- lmer(hamd ~ week + diag + (week | id), data = dat, REML = FALSE) m4 <- lmer(hamd ~ week * diag + (week | id), data = dat, REML = FALSE) anova(m3, m4) ``` ## Data: dat ## Models: ## m3: hamd ~ week + diag + (week | id) ## m4: hamd ~ week * diag + (week | id) ## npar AIC BIC logLik -2*log(L) Chisq Df Pr(>Chisq) ## m3 7 2228.9 2256.4 -1107.5 2214.9 ## m4 8 2230.9 2262.3 -1107.5 2214.9 0.0042 1 0.9486 ## Means and predicted HDRS score by group ``` r dat2 <- aggregate(hamd ~ week + diag, dat, mean) dat2$m4 <- predict(m4, newdata = dat2, re.form = ~ 0) plot(m4 ~ week, dat2[dat2$diag == "endog", ], type = "l", ylim=c(0, 28), xlab="Week", ylab = "HDRS score") lines(m4 ~ week, dat2[dat2$diag == "nonen", ], lty = 2) points(hamd ~ week, dat2[dat2$diag == "endog", ], pch = 16) points(hamd ~ week, dat2[dat2$diag == "nonen", ], pch = 21, bg = "white") legend("topright", c("Endogenous", "Non endogenous"), lty = 1:2, pch = c(16, 21), pt.bg = "white", bty = "n") ``` ![](powersim-lmm_files/figure-gfm/unnamed-chunk-7-1.png) ## Gory details ``` r fixef(m4) ``` ## (Intercept) week diagendog week:diagendog ## 22.47626332 -2.36568746 1.98802087 -0.02705576 ``` r getME(m4, "theta") ``` ## id.(Intercept) id.week.(Intercept) id.week ## 0.9760823 -0.1175194 0.3951992 ``` r t(chol(VarCorr(m4)$id))[lower.tri(diag(2), diag = TRUE)] / sigma(m4) ``` ## [1] 0.9760823 -0.1175194 0.3951992 # Power simulation ## Setup ``` r ## Study design and sample sizes n_week <- 6 n_subj <- 80 n <- n_week * n_subj dat <- data.frame( id = factor(rep(seq_len(n_subj), each = n_week)), week = rep(0:(n_week - 1), times = n_subj), treat = factor(rep(0:1, each = n/2), labels = c("ctr", "trt")) ) ## Fixed effects and variance components beta <- c(22, -2, 0, -1) Su <- matrix(c(12, -1.5, -1.5, 2), nrow = 2) se <- 3.5 ``` ## Power ``` r pval <- replicate(200, { # Data generation means <- model.matrix( ~ week * treat, dat) %*% beta ranu <- MASS::mvrnorm(n_subj, mu = c(0, 0), Sigma = Su) e <- rnorm(n_subj * n_week, mean = 0, sd = se) y <- means + ranu[dat$id, 1] + ranu[dat$id, 2] * dat$week + e # Fitting model to test H0 m0 <- lmer(y ~ week + treat + (1 + week | id), data = dat, REML = FALSE) m1 <- lmer(y ~ week * treat + (1 + week | id), data = dat, REML = FALSE) anova(m0, m1)["m1", "Pr(>Chisq)"] } ) mean(pval < 0.05) ``` ## [1] 0.805 ## Parameter recovery ``` r par <- replicate(200, { means <- model.matrix( ~ week * treat, dat) %*% beta ranu <- MASS::mvrnorm(n_subj, mu = c(0, 0), Sigma = Su) e <- rnorm(n_subj * n_week, mean = 0, sd = se) y <- means + ranu[dat$id, 1] + ranu[dat$id, 2] * dat$week + e m1 <- lmer(y ~ week * treat + (1 + week | id), data = dat, REML = FALSE) list(fixef = fixef(m1), theta = getME(m1, "theta"), sigma = sigma(m1)) }, simplify = FALSE ) rowMeans(sapply(par, function(x) x$fixef)) ``` ## (Intercept) week treattrt week:treattrt ## 22.00069056 -1.98276116 0.03001846 -1.03298775 ``` r rowMeans(sapply(par, function(x) x$theta)) ``` ## id.(Intercept) id.week.(Intercept) id.week ## 0.9767601 -0.1180799 0.3763657 ``` r mean(sapply(par, function(x) x$sigma)) ``` ## [1] 3.479607 ``` r beta ``` ## [1] 22 -2 0 -1 ``` r Lt <- chol(Su) t(Lt)[lower.tri(Lt, diag = TRUE)] / se ``` ## [1] 0.9897433 -0.1237179 0.3846546 ``` r se ``` ## [1] 3.5 ### References
Reisby, N., L. F. Gram, P. Bech, A. Nagy, G. O. Petersen, J. Ortmann, I. Ibsen, et al. 1977. “Imipramine: Clinical Effects and Pharmacokinetic Variability.” *Psychopharmacology* 54: 263–72. .
